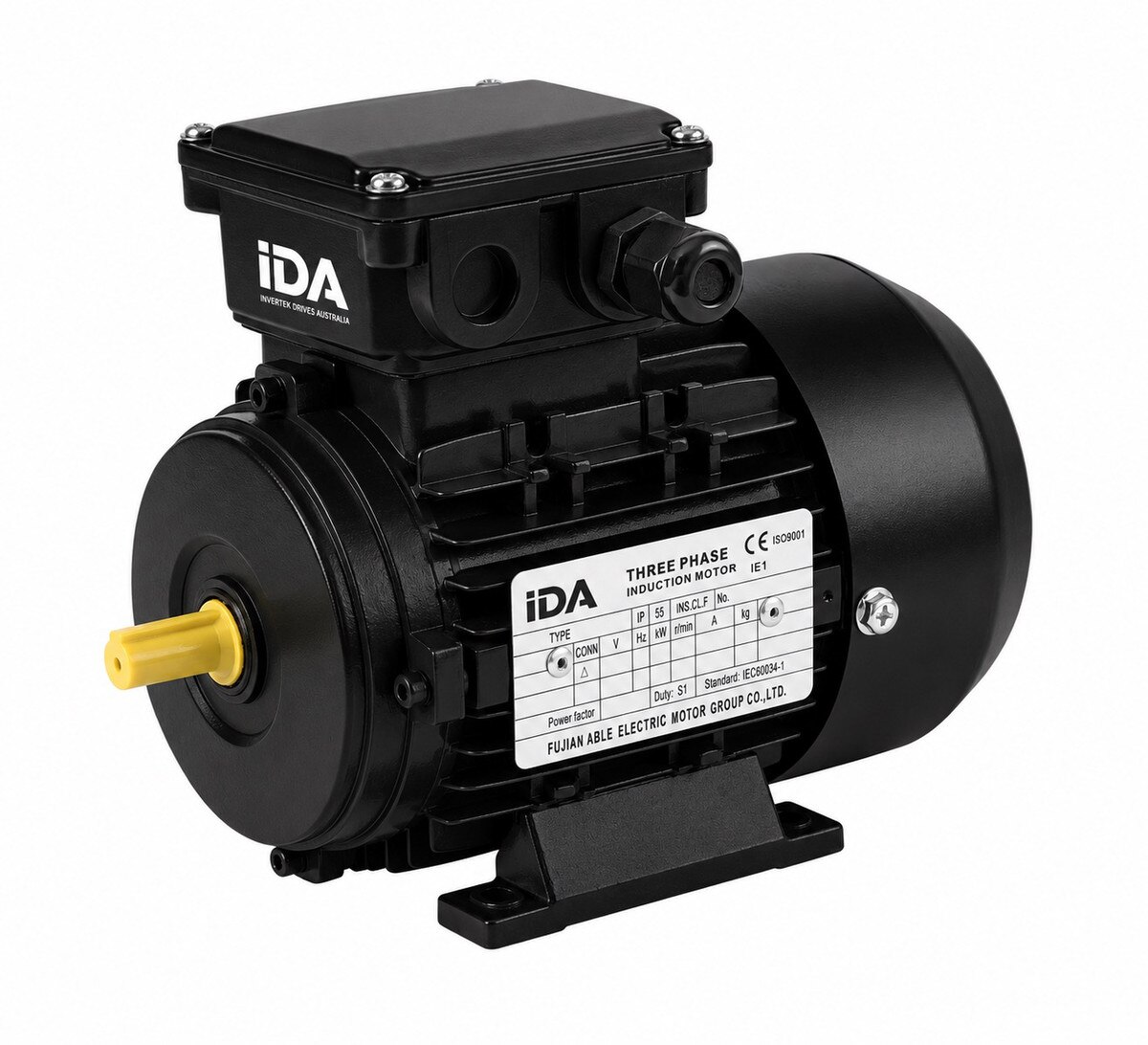

0,18kW (0,25HP) 2 Pole AC Induction Motor 3ph 240V/415V B3 Foot Mount - 63/11

Fixed Mains Supply Output:  0.18kW (0.25HP) x 1350RPM at 240V or 415V x 50Hz 3ph.
Inverter Supply Output:  20:1 Speed Control range from 135RPM to 2700RPM for 5Hz to 100Hz, with suitable de-rating at the lower speeds (70Hz is the maximum continuous for maximum output).

Full Load Current - 1.22A at 240V, or 0.7A at 415V.
Power Factor is 0.65 when mains connected at 50Hz.
Efficiency is 60% at full load.
Set terminal box links 'three a-breast' for 240V 'Delta' connection.
Set terminal box links ‘two at one side’ for 415V 'Star' connection.

130mm Wide x 215mm Long x 173mm high overall in its IP55 enclosure.
Foot mount on 7mm holes at 100mm wide x 80mm centres 40mm back from shaft shoulder.
Shaft is 11mm dia x 23mm with 4mm wide key.
Terminal box has 1 x M20 Gland.
Weight is 4.5kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Part number is - M32000183IMA

For the Technical:-
Part Time Output when Inverter powered is...
0.63Nm - 0.18kW (0.25HP) x 2700RPM at 100Hz
1.27Nm - 0.18kW (0.25HP) x 1350RPM at 50Hz
1.27Nm - 0.09kW (0.12HP) x 675RPM at 25Hz
1.27Nm - 0.018kW (0.025HP) x 135RPM at 5Hz

Continuous Output when Inverter powered is...
0.9Nm - 0.18kW (0.25HP) x 1890RPM at 70Hz
1.27Nm - 0.18kW (0.25HP) x 1350RPM at 50Hz
1.08Nm - 0.077kW (0.1HP) x 675RPM at 25Hz
0.63Nm - 0.009kW (0.012HP) x 135RPM at 5Hz
