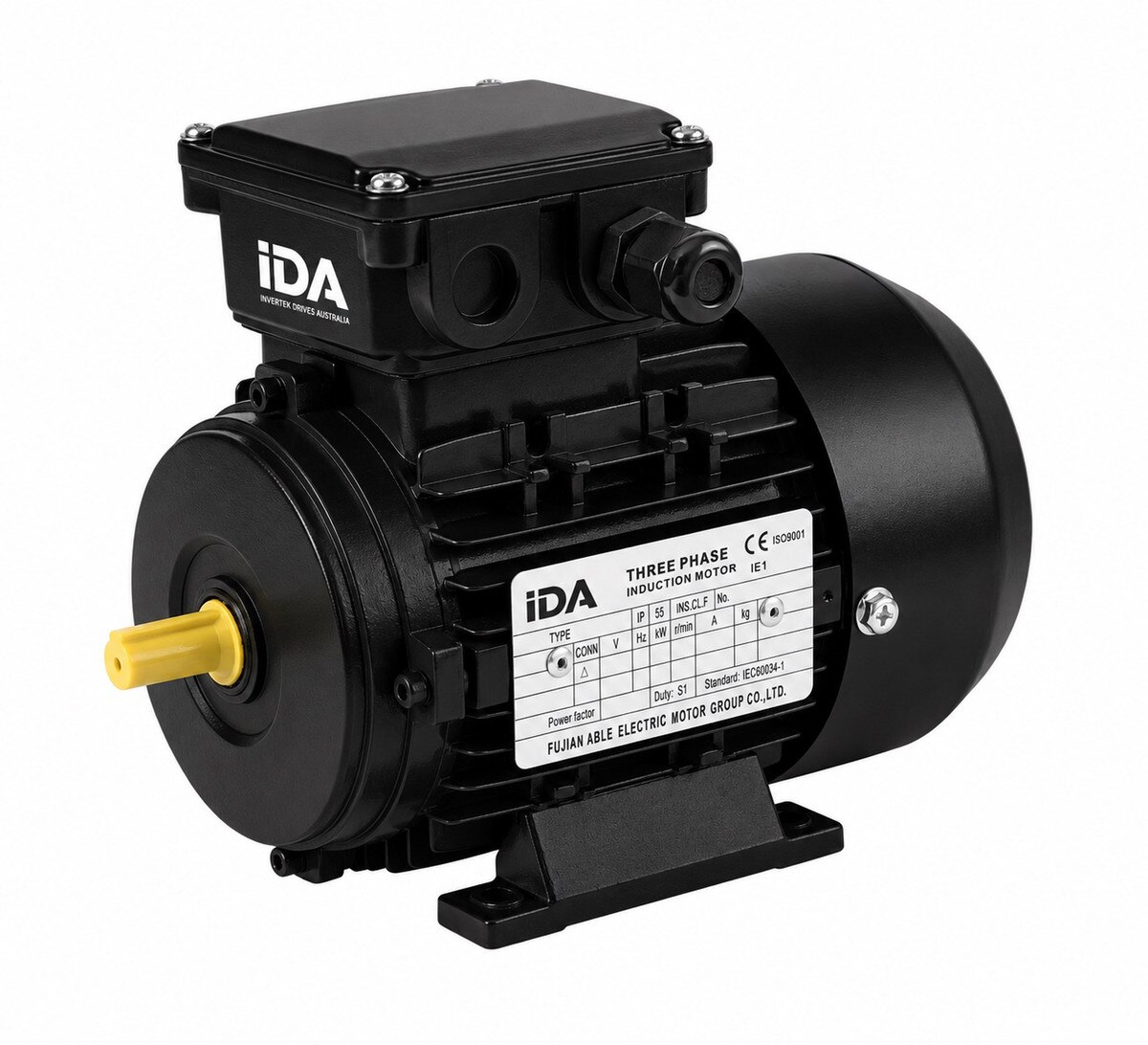

0,75kW (1HP) 2 Pole AC Induction Motor 3ph 240V/400V B3 Foot Mount - 80/19

Fixed mains supply output: 0.75kW (1HP) x 2840RPM at 240V or 415V x 50Hz 3ph.
Inverter Supply Output: 14:1 Speed Control range from 284RPM to 3976RPM for 5Hz to 70Hz control, with suitable de-rating at the lower speeds.

Full Load Current - 3A at 230V, or 1.8A at 400V.
Power Factor is 0.8 when mains connected at 50Hz.
Efficiency is 77.4%

160mm Wide x 290mm Long x 213mm high overall in its IP55 enclosure.
Foot mount on 10mm holes at 125mm wide x 100mm centres 50mm back from the shaft shoulder.
Shaft is 19mm dia x 40mm with 6mm wide key.
Weight is 8.9kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Part number is - M32000753IMPA

For the Technical:-
Part Time Output when Inverter powered is...
1.8Nm - 0.75kW ( 1.01HP) x 3976 RPM at 70 Hz
2.52Nm - 0.75kW ( 1.01HP) x 2840 RPM at 50 Hz
2.52Nm -0.375kW ( 0.5HP) x 1420 RPM at 25 Hz
2.52Nm - 0.075kW ( 0.1HP) x 284 RPM at 5 Hz
Continuous Output when Inverter powered is...
1.8Nm - 0.75kW ( 1.01HP) x 3976 RPM at 70 Hz
2.52Nm - 0.75kW ( 1.01HP) x 2840 RPM at 50 Hz
2.14Nm - 0.32kW ( 0.43HP) x 1420 RPM at 25 Hz
1.26Nm - 0.0375kW ( 0.05HP) x 284 RPM at 5 Hz
