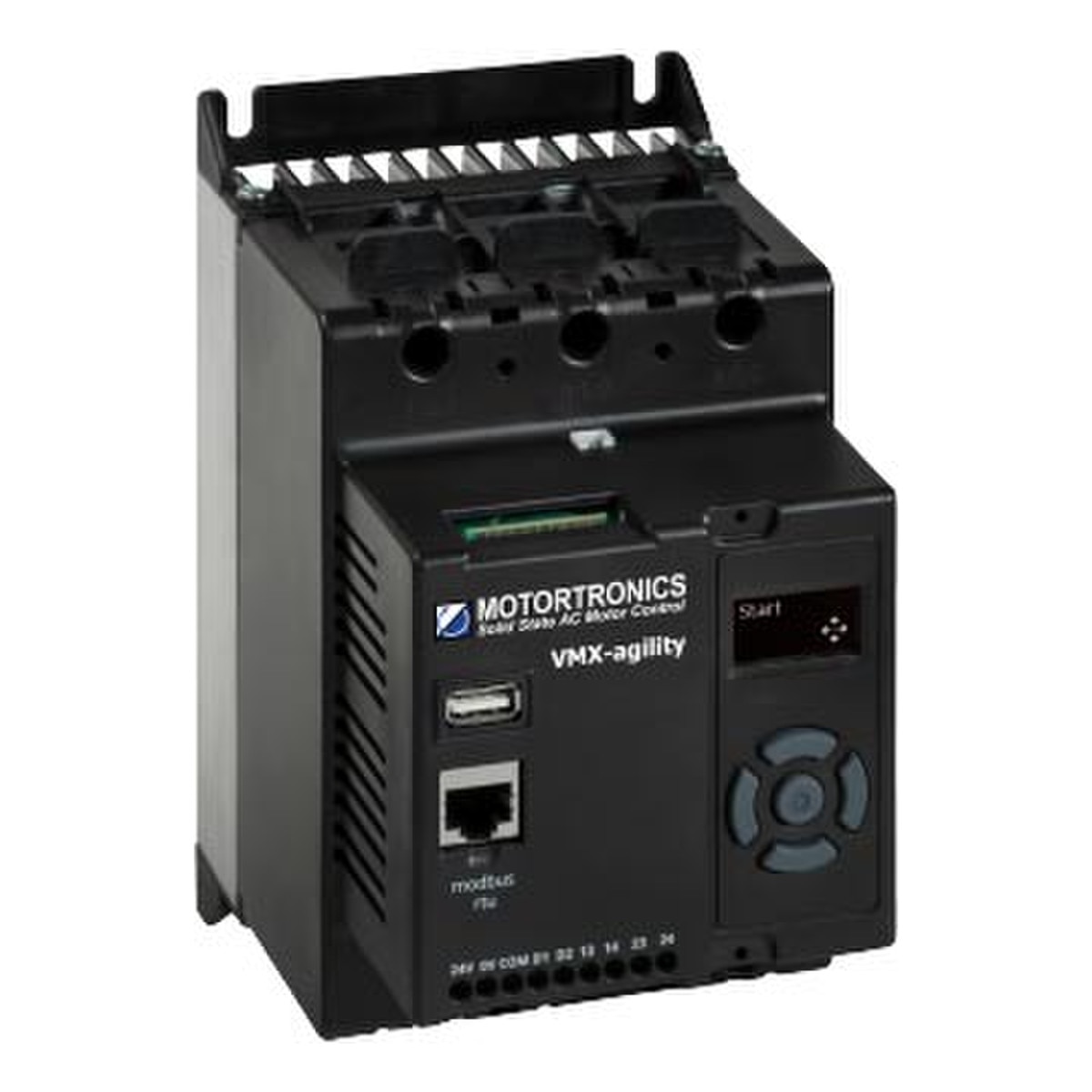

Soft Starter - 7.5kW, 17A TC10 200-600Vac

AGY-101-6-01 is a high-performance industrial soft starter engineered for demanding motor control applications, combining rapid application setup with advanced motor protection and diagnostics.

KEY FEATURES

• i23 smart application pre-program suite – 23 setup profiles for under-1-minute commissioning
• 3S Technology for smooth automatic ramp control
• OLED display with full text messaging and real-time value monitoring
• Modbus RTU communications as standard
• Life Event Logging – records the last 1,600 events for fault analysis via StarterView software
• Full I²T motor overload protection with thermal memory retention
• Fire Mode – external override for emergency operation
• Automatic Reset for nuisance trips
• Control of single or three-phase motors
• Internal bypass reduces losses at top of ramp

APPLICATIONS

• Pumps (centrifugal, submersible, rotary)
• Compressors
• Loaded and unloaded conveyors
• Fans and blowers
• Mixers and agitators
• Crushers, mills and shredders

TECHNICAL SPECIFICATIONS
