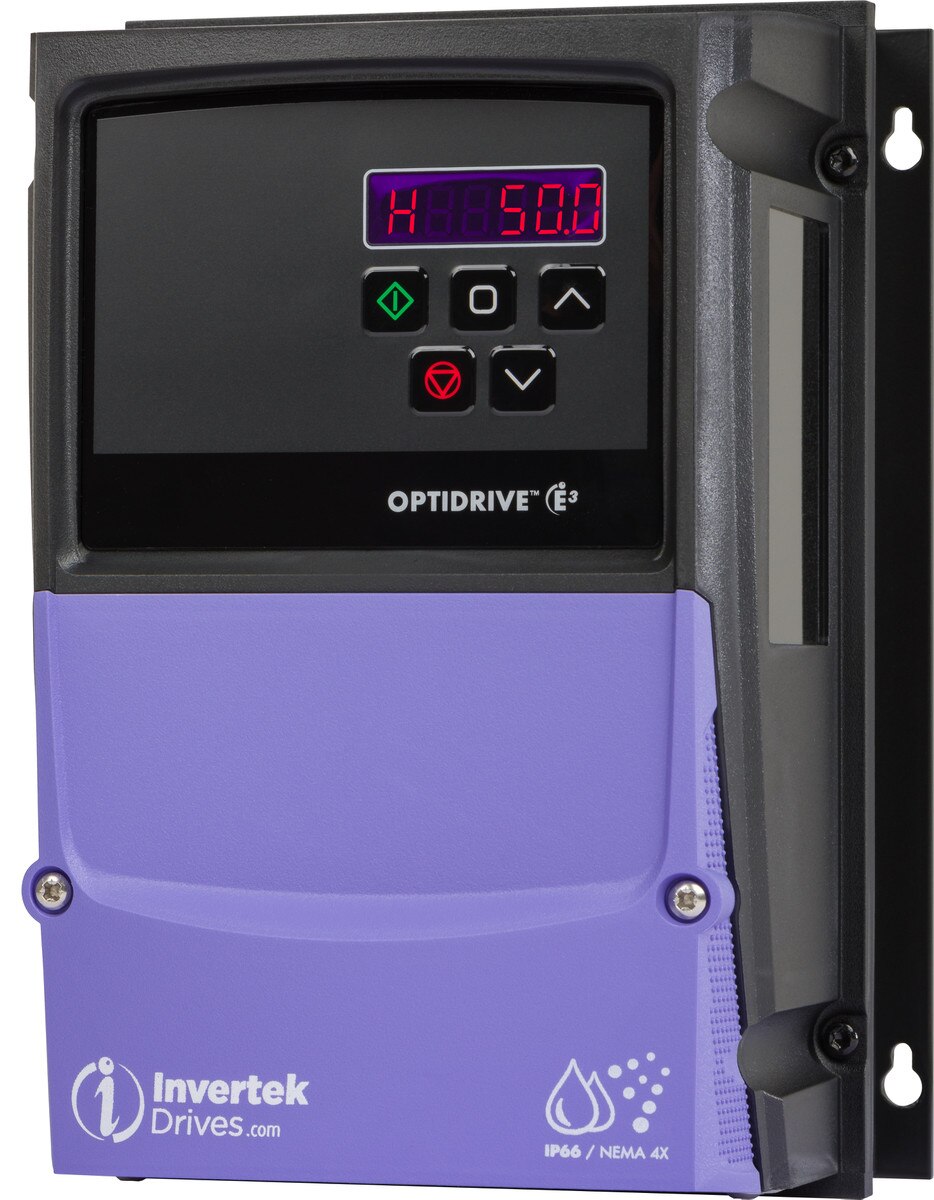

IDA E3-01 SINGLE PHASE MOTOR DRIVE
E3-220105-1F4A-01
1.1 kW • 10.5 A • 200–240 Vac • 1 Phase
IP66 Non-Switched Outdoor with internal EMC filter
E3-220105-1F4A-01 is a compact variable speed drive specifically designed for Permanent Split Capacitor (PSC) and Shaded Pole single-phase induction motors. It provides smooth variable speed control for HVAC equipment, pumps, fans and other compatible single-phase motor applications.
The IDA E3-01 platform provides cost-effective, easy-to-use variable speed control for compatible single-phase motors, with straightforward commissioning and reliable operation for OEM and industrial applications.
KEY FEATURES
- Single-phase input and single-phase motor output
- Designed for PSC and Shaded Pole motors
- Compact and cost-effective motor control
- Simple commissioning using factory settings
- PID process control
- Programmable digital and analogue I/O
- Modbus RTU communication
APPLICATIONS
- HVAC fans and blowers
- Single-phase pumps
- Ventilation equipment
- PSC motor applications
- Shaded Pole motor applications
- OEM machinery
TECHNICAL SPECIFICATIONS
Input Ratings| Supply Voltage | 200–240 Vac | | Input Phases | 1 Phase |
Output Ratings| Motor Output Rating | 1.1 kW | | Output Voltage | 230V, 1-ph, 10.5A | | Output Current | 10.5 A | | Output Phases | 1 Phase |
Factory Build Options| Internal EMC Filter | Yes | | Internal Brake Transistor | Yes | | Enclosure | IP66 Non-Switched Outdoor |
Cable Information| Maximum Supply Cable Size | 8 mm² | | Maximum Motor Cable Size | 8 mm² | | Maximum Motor Cable Length | 100 m |
| Control & Communications| Safe Torque Off (STO) | No | | Sensorless Vector Control | Yes | | Permanent Magnet Motor Support | Yes | | Integrated PLC | No | | PID Control | Yes | | Communications | Modbus RTU |
Drive Dimensions| Frame Size | Size 2 | | Height | 257 mm | | Width | 188 mm | | Depth | 172 mm | | Weight | 3.5 kg | | Fixings | 4 × M4 |
Packaged Dimensions| Packaged Height | 215 mm | | Packaged Width | 235 mm | | Packaged Depth | 375 mm | | Packaged Weight | 4.2 kg |
|
OEM reference: ODE-3-220105-1F4A-01
