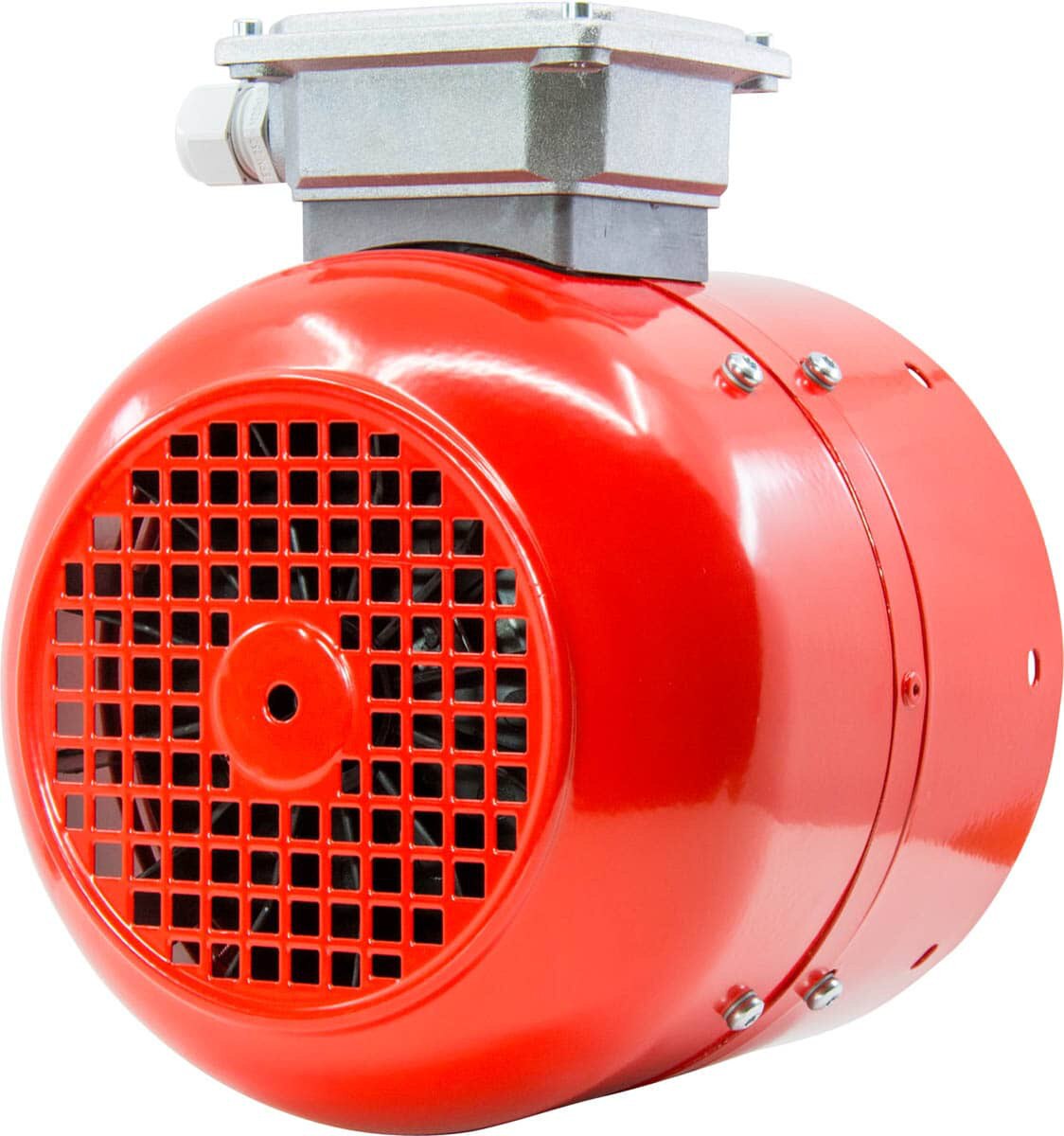

IDA FORCED VENTILATION UNIT FRAME 112 IMA/IMPA

Forced Ventilation Unit IP66

Insulation cl.F

Az=218
Ah=216mm
B=195
C=66
D=129mm
Gr=5mm
X=96.5mm

with PPN-Terminal Box IP66 (5671)

Single-Phase connection "Steinmetz" & capacitor 4uF

207~303Vac D, 50Hz; 0.65A, 2759 1/min.
207~333Vac D, 60Hz; 0.62A, 3201 1/min.

Three-Phase connection without capacitor

207~303Vac D / 360~525Vac Y, 50Hz; 0.64A / 0.37A; 2759 1/min.
207~333Vac D / 360~575Vac Y, 60Hz; 0.58A / 0.33A; 3360 1/min.
