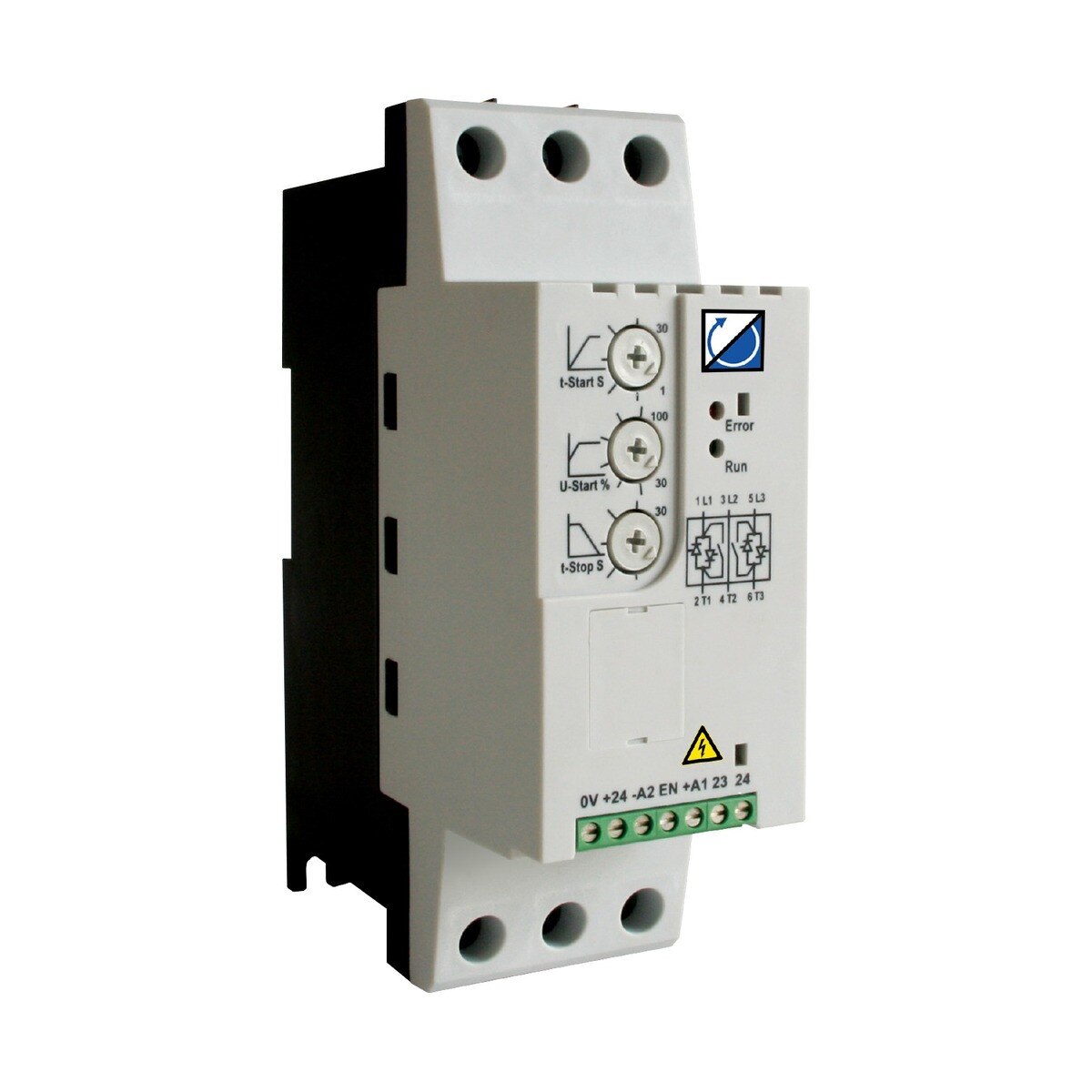

Soft Starter 41AMP 22kW, 230V~460V

PFE-18 is a compact, cost-effective electronic soft starter designed for small AC induction motors, delivering smooth, controlled starting and stopping in space-constrained industrial and OEM applications.

KEY FEATURES

• Internal bypass eliminates harmonics and saves cabinet space
• 3S Technology for smooth automatic ramp control, up to 30 second soft start and soft stop
• Trip Class 30 start duty rating for heavier duty starting applications
• Control of single or three-phase motors via jumper selection
• Optional cooling fan increases starts per hour up to 60 starts/hour (Class 2)
• Over current protected against use above duty rating
• Compact 45mm wide DIN-rail mounted design (Size 1)
• Multifunction LED indication on front panel

APPLICATIONS

• Pumps and fans
• Conveyors
• Compressors
• Small industrial machinery
• OEM machinery

TECHNICAL SPECIFICATIONS
