MIG NOVA+ incremental encoder Aluminium Flange: 200/165/130, Bore: 19mm, Impulse count: 1024, AB/-A-B/90deg, HTL/TTL, 5-24 VDC, 2m cable, IP55 (IP67 sealed)

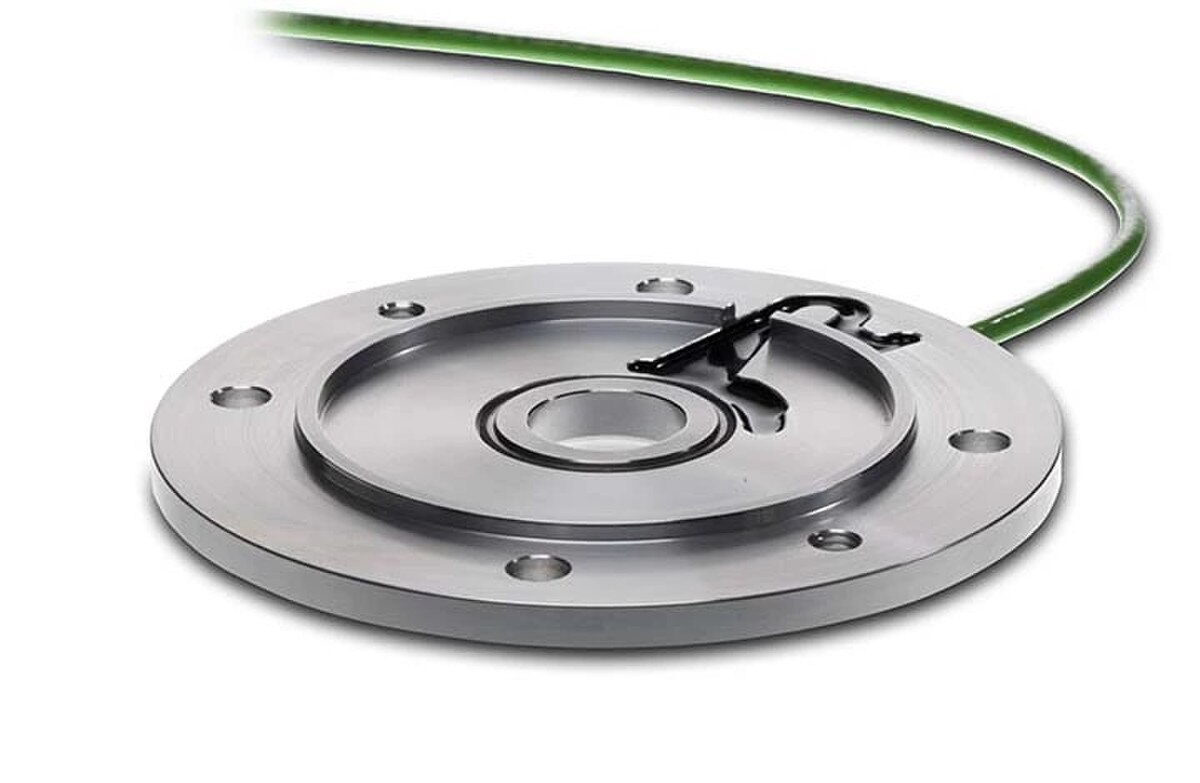

MIG NOVA+ Incremental Encoder — Ø200 mm Intermediate Flange

Magnetic incremental encoder with the sensing electronics sealed inside an IEC intermediate flange, mounted between the motor and the driven machine or gearbox. The flange adds only 9 mm to the drive train, so speed feedback can be added to existing machinery without redesigning it. There are no exposed electronic components, and the elastomer-bonded magnet ring is carried on a stainless steel hub for corrosion resistance. The HTL / TTL output suits virtually all control systems.

Electrical data

• Pulses per revolution: 1024
• Output signals: square wave, A 90° B and inverted A′ 90° B′
• Interface: HTL (push-pull) / TTL
• External evaluation: NPN, PNP, RS 422
• Supply voltage U_B: 5 – 24 Vdc
• Signal level: U_HIGH ≥ U_B − 0.7 V and U_LOW ≤ 0.7 V at I_load ≤ 10 mA
• Output load capacity: ≤ 30 mA at 5 Vdc, ≤ 20 mA at 24 Vdc
• Maximum output frequency: ≤ 100 kHz
• Maximum speed: 6 000 min^-1 at 1024 ppr
• Protected against reverse polarity and against short circuit at the output
• Cable: 2 m PUR sheath, 6 x 0.14 mm², screened

Mechanical data

• Motor frame and mounting: IEC 80, B5 flange
• Flange outside diameter: Ø200 mm
• Spigot diameter: Ø130 mm
• Bolt pitch circle: Ø165 mm
• Bore: Ø120 mm
• Hub recess: Ø60 mm
• Flange thickness: 9 mm
• Fixing holes: 4 x Ø11 mm on the Ø165 mm pitch circle
• Extraction holes: 2 x M10 on the Ø165 mm pitch circle
• Flange and hub material: aluminium / stainless steel
• Permissible shaft play: 0.5 mm axial, 0.05 mm radial
• General tolerance: DIN ISO 2768-1-m / 2-K
• Operating temperature: −30 to +80 °C
• Protection class: IP55 standard, up to IP67 subject to the seal between motor and machine flange
• Net weight: 1.5 kg

Certifications

• CE, RoHS
• EMC emission: EN 55011
• EMC immunity: EN 61326-1

Supplied with

• Ø200 mm aluminium encoder flange, 9 mm, with integral sensing electronics and 2 m cable
• Magnetic hub MAN19-32-9-39, Ø19 x 40 mm, magnet ring Ø39.1 mm
• Tolerance ring
