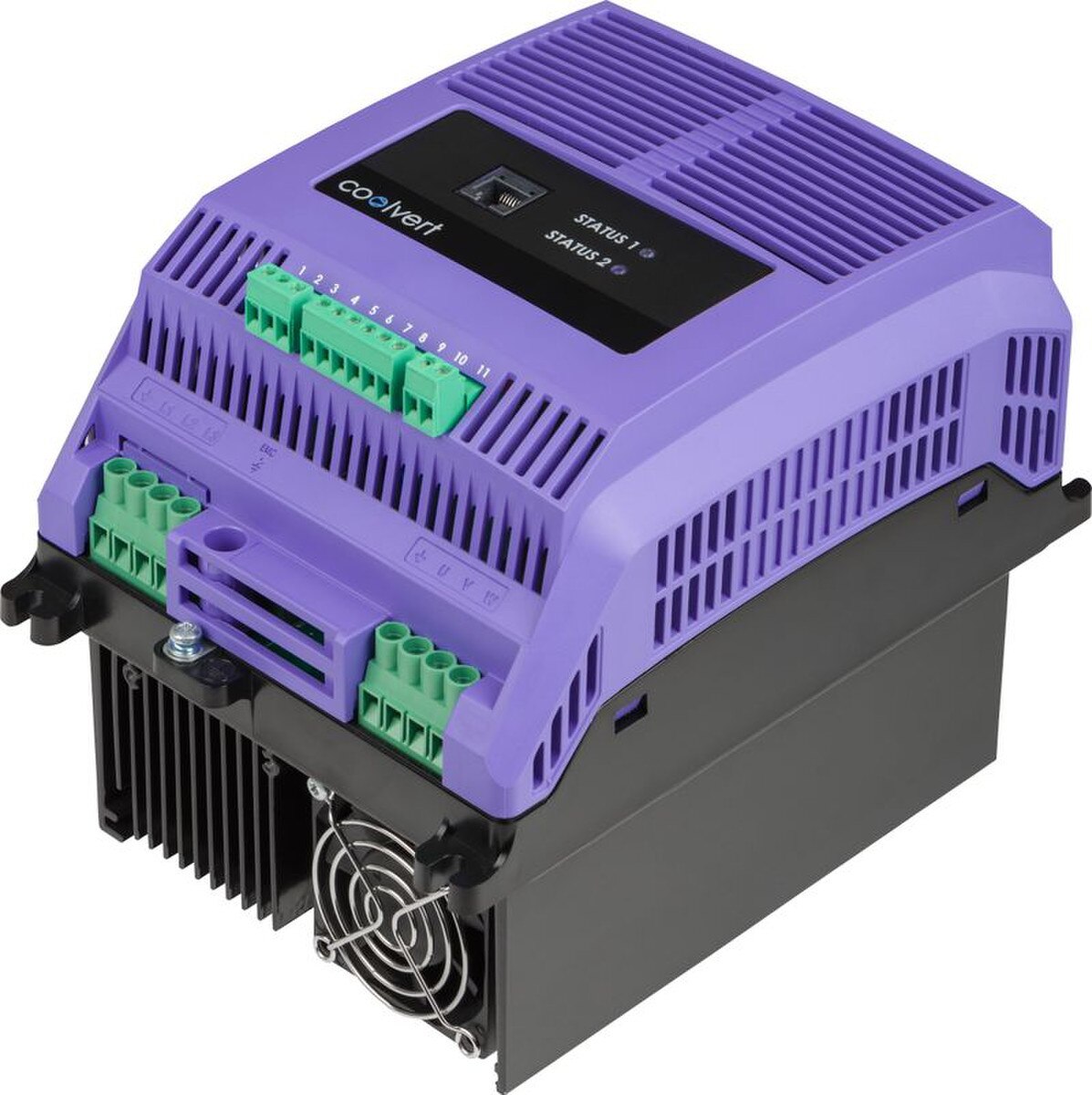

COOLVERT 16A 240V HEATSINK
Details
+
Details
+
IDA CV COOLVERT COMPRESSOR DRIVE
IDA-CV-220160-1FHP
3 kW • 16 A • 200–240 Vac • 1 Phase

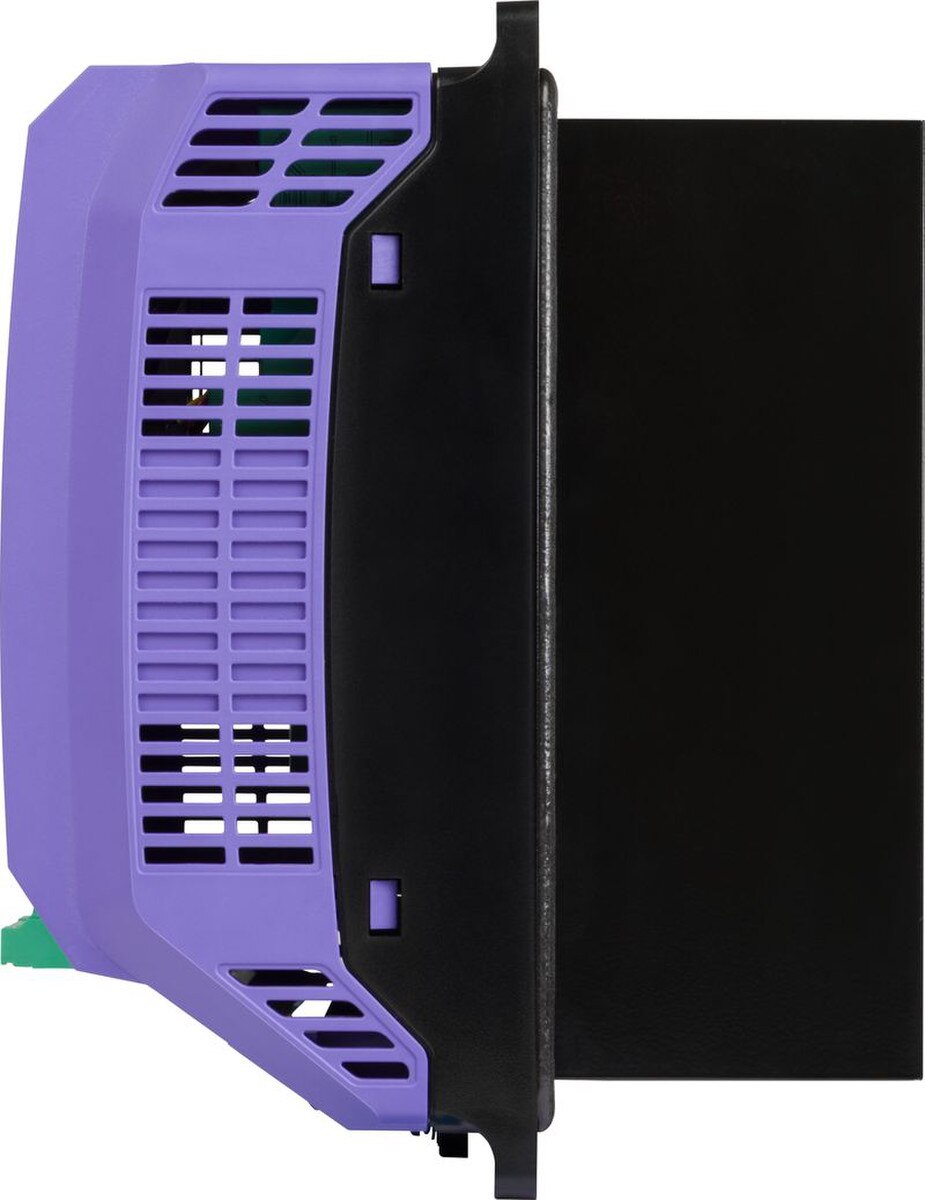

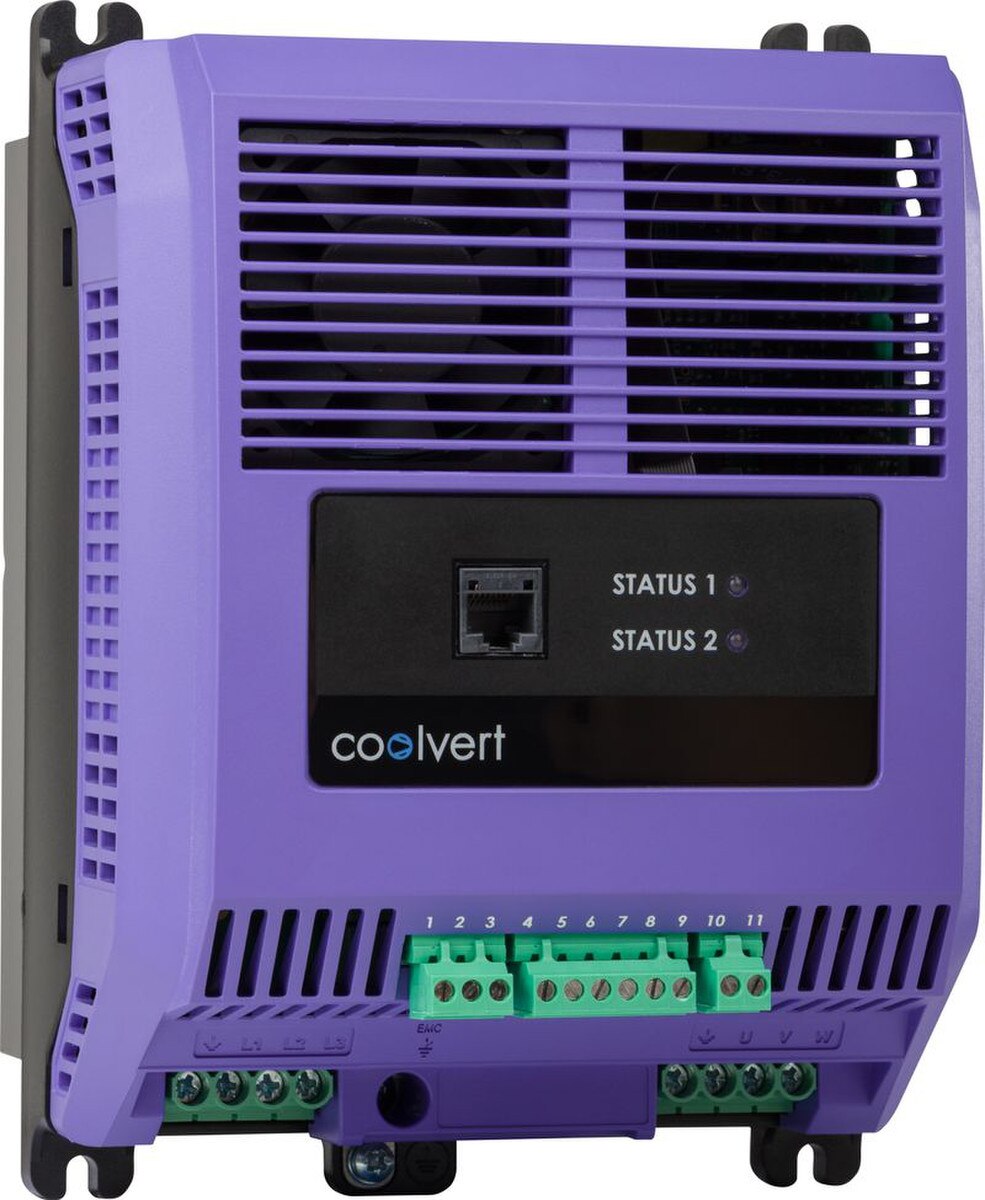

IP20 Front / IP55 Rear Through-Panel with internal EMC filter and Two Status LEDs; optional remote TFT keypad
IDA-CV-220160-1FHP is a dedicated high-efficiency compressor variable speed drive for hermetic rotary and scroll compressors, with compressor-specific starting, protection, oil return and crankcase heating functions.
The IDA CV CoolVert platform is engineered for OEM refrigeration and heat-pump systems, combining high-efficiency compressor control with active PFC or low-harmonic input technology, through-panel or coldplate mounting, and dedicated compressor safety functions.
KEY FEATURES
- Dedicated rotary and scroll compressor control
- IM, PM and BLDC compressor motor support
- Accurate starting torque with independent acceleration ramps
- Oil return management
- Built-in crankcase heating
- Minimum compressor on/off timers
- Locked rotor, phase loss and compressor demagnetisation protection
- IEC 60730 Class B compressor protection
- Built-in SIL 3 Safe Torque Off (STO)
- Internal PI control and Modbus RTU
- Integrated EMC filter
- A2L and A3 flammable refrigerant compatible
APPLICATIONS
- Chillers
- Refrigerated display cases
- Heat pumps
- Condensing units
- Rotary compressor systems
- Scroll compressor systems
- R290, A2L and A3 refrigerant applications
TECHNICAL SPECIFICATIONS
Input Ratings
Output Ratings
Factory Build Options
Cable Information
| Control & Communications
Drive Dimensions
|
OEM reference: CV-220160-1FHP
