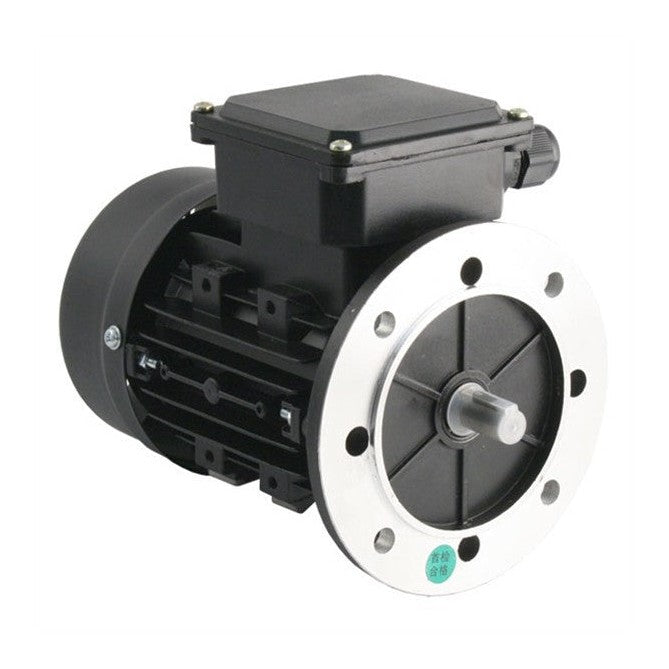

INVERTEK 0,55kW (3/4HP) 4 Pole AC Induction Motor 3ph 240V/415V B5 Flange Mount - 80/19

INVERTEK - 0.75kW 3ph 4 Pole High Efficiency Flange Mounting (B5) 80 Frame AC Motor for 230V or 400V 3 phase supply.  Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.

Fixed mains supply output: 0.75kW (1HP) x 1410RPM at 230V or 400V x 50Hz 3ph.
Inverter Supply Output: 20:1 Speed Control range from 141RPM to 2820RPM for 5Hz to 70Hz control, with suitable de-rating at the lower speeds.

Full Load Current - 3.10A at 230V, or 1.79A at 400V.
Power Factor is 0.76 when mains connected at 50Hz.
Efficiency is 79.6%

160mm Wide x 290mm Long x 213mm high overall in its IP55 enclosure.
Flange mount on 12mm holes at 165mm PCD with 130mm diameter spigot in the 200mm diameter flange.
Shaft is 19mm dia x 40mm with 6mm wide key.
Weight is 11.1kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.

Part number is - M34000555IMA

For Variable Speed use:-
Part Time Output when Inverter powered is...
2.54Nm - 0.75kW ( 1.01HP) x 2820 RPM at 100 Hz
5.08Nm - 0.75kW ( 1.01HP) x 1410 RPM at 50 Hz
5.08Nm -0.375kW ( 0.50HP) x 705 RPM at 25 Hz
5.08Nm - 0.075kW (0.10HP) x 141 RPM at 5 Hz
Continuous Output when Inverter powered is...
3.6Nm - 0.75kW (1HP) x 1974RPM at 70Hz
5.08Nm -0.75kW ( 1.01HP) x 1410 RPM at 50 Hz
4.32Nm - 0.32kW ( 0.43HP) x 705 RPM at 25 Hz
2.54Nm - 0.04kW (0.05HP) x 141 RPM at 5 Hz
