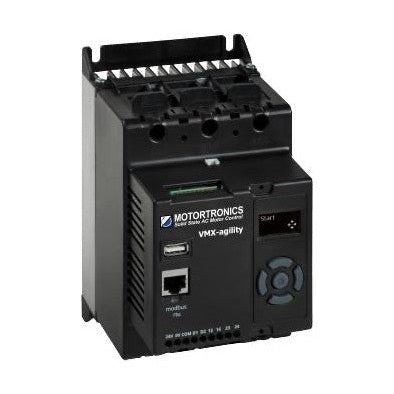

AGILITY Soft Starter 160kW, 302A TC10 200-600Vac

Motortronics Agility Series Soft Starter suitable for starting standard three phase induction motors to 132kW (200HP) at 242A subject to application.

Rated to suit motors and Trip Class Ratings:-
160kW, 302A at 400V - Trip Class 10.
132kW, 242A at 400V - Trip Class 20.
110kW, 195A at 400V - Trip Class 30. See trip class guide below.
Can also be used on 230V 3 phase and 500V supplies, see manual below.

The Agility frame 3 soft starters have an integral fan.

Main Circuit IP00 (IP20 with optional finger guard). Control Circuit IP20.

Frame 3 Dimesnsions: 490mm high x 205mm wide x 332mm deep.
Weight: 15kg.

Features include:
Integral OLED Display for fast programming.
Internal bypass.
2 x Digital Inputs (24Vdc or 110Vac or 230Vac +/-10% voltage dependent voltage applied to D1-2 Com terminals)
1 x Run Relay, 1 x Fault Relay.
USB terminal for firmware upgrades and data logging..
Modbus RTU Fieldbus communications port built in.

Input Voltage: 200Vac to 600Vac, at 50/60Hz +/- 10%
Supply fuse rating 900A semiconductor type aR - see linked products below.
Requires external power supply (not included, see linked products below) or compatible 24V 2A DC supply for operation.

Cubicle mount.
Ventilation space above and below: 100mm
Ventilation space at sides: 40mm
Ventilation space in front: 25mm
Mounting via 4 bolts at rear on 283mm x 75mm centres.
Operating Temp: -20°C to 40°C. Above 40°C derate linearly by 2% per °C to a maximum of 60°C
Heat loss: 139W.

Manufacturer part number is VMX-AGY-303-6-01. Identical to previous part AGY-303-6-01 except for branding (Fairford became Motortronics UK in 2019).

• VMX AGY Agility Manual
• VMX AGY Agility Quick Start Guide
• Soft Starter Trip Class Guide
