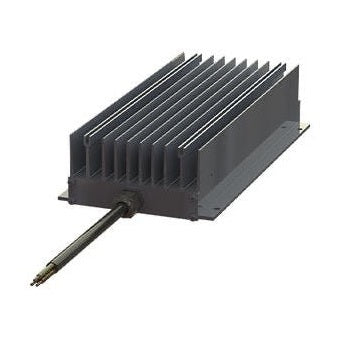

Brake Resistor Power: 2000W Resistance: 80 Ohms Protection: IP66 Thermal Switch Cable: 1m
Brake Resistor Power: 2000W Resistance: 80 Ohms Protection: IP66 Thermal Switch Cable: 1m
SKU:BW155/2000/80R/S
In stock
Resistance rating 80 Ohms
Connect 2x in parallel to provide 4000W 40 Ohms
RESISTOR REOHM BW 155
Max. continous power: 3.000 W
DESCRIPTION
Braking resistor for drives with frequency converters of medium to high power. Mounting inside and outside the control cabinet is possible.
ADVANTAGES
- small dimensions
- quick connection
- adaptation to any frequency inverter
- good power to size ratio
- optional with cover and temperature switch
- optionally also for aggressive environments (e.g. salt mist)
- protection type: IP66
TYPICAL APPLICATIONS
Braking resistor for drives with frequency converters of medium to high power. Mounting inside and outside the control cabinet is possible.
SERVICES
- degree of protection: IP20 / IP65 / IP66
- test voltage: 2.5 kV AC
- ambient temperature: 10+40 ºC
- other services on request
- other fastenings on request
- optional with external cooling
TECHNICAL DATA
In the event of destruction, the resistor becomes high-impedance. Each series is available with a temperature switch. The specified performance values were measured at a horizontal position of the resistors in the air with a distance of min. 100mm to the substrate. The power values refer to the standard products with a normal tolerance of +/- 10% at an ambient temperature of 20°C.
*With small resistance values, the conductor cross-section is adapted to the current
