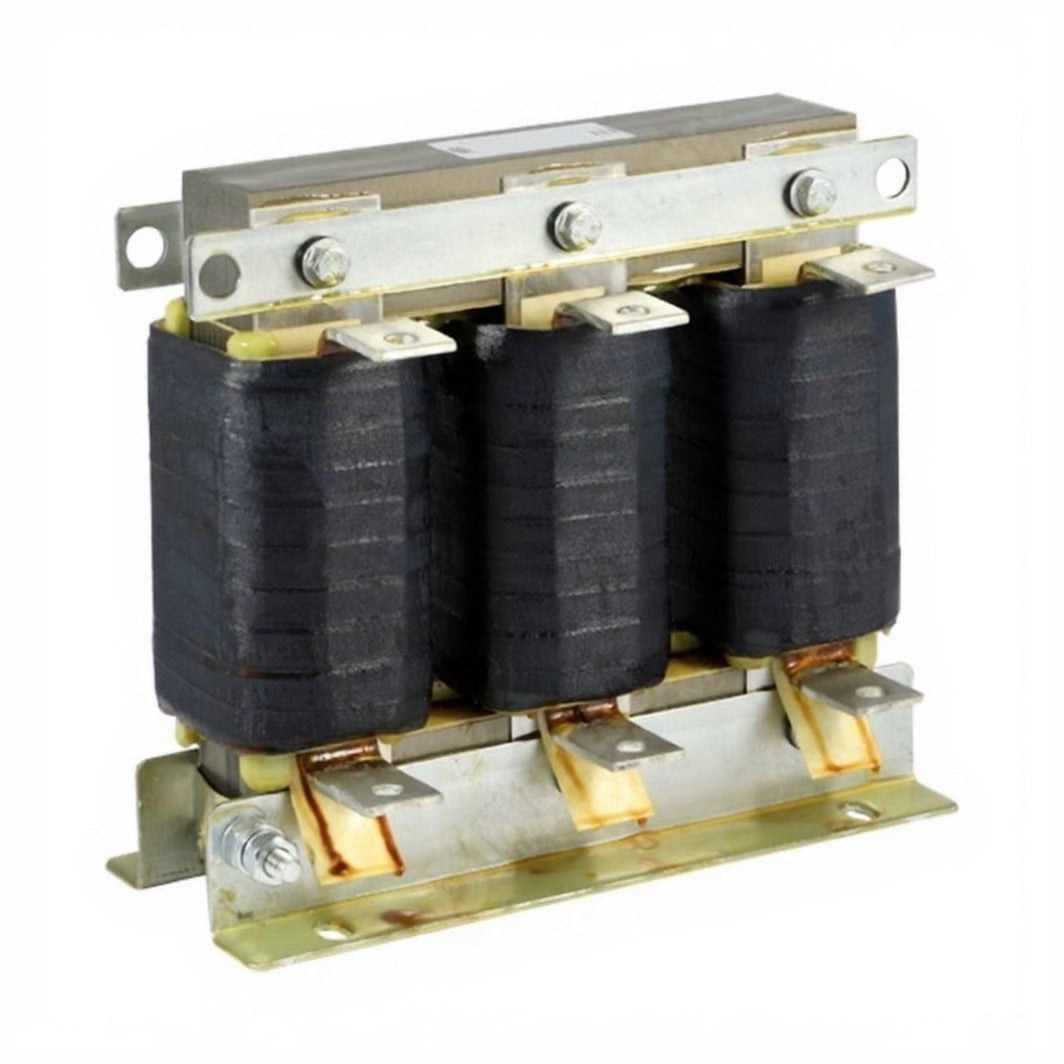

2% AC Line Choke to 300A Three Phase.
Connect to the mains input of a 3ph AC Inverter Drive to increase protection from mains transients, reduce harmonic current (THD) and reduce the RMS load.
Recommended for an Inverter Drive connection to a high fault level low impedance supply, where sliding contacts on busbars are present and where the incoming power supply is prone to spikes, dips notches or other disturbances.
Current Rating: 300A.
Overload: 1.5 x for 60 seconds onece per hour.
Voltage: up to 500V 3 phase
Inductance: 0.05mH.
Power Loss: 161W.
Protection: IP00.
Dimensions: 300mm x 151mm x 270mm High.
Weight: 24kg.
Standards: EN 60289 / EN 61558
Also known as: Mains Choke, Line Reactor, AC Choke, AC Inductor or Input Choke.
Part Number: IDA-T2-L3160-20
