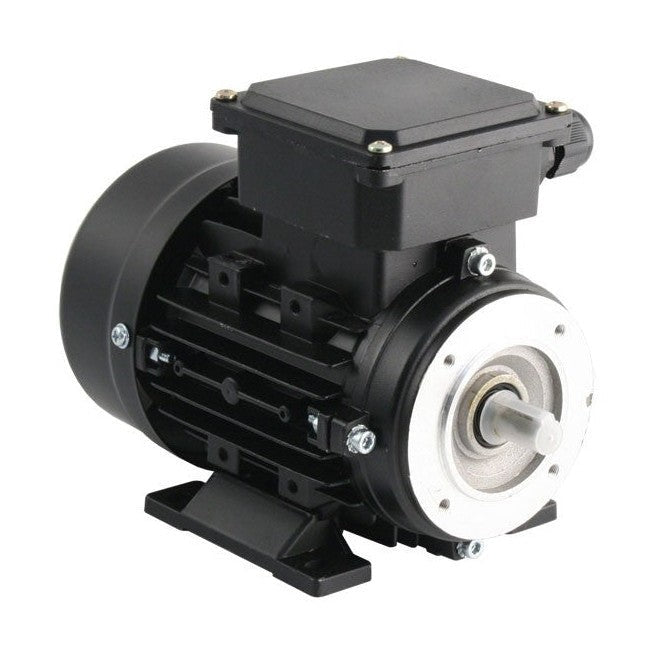

INVERTEK 0.55kW (3/4HP) 4 Pole AC Induction Motor 3ph 240V/415V B34 Foot & Face Mount IP66 - 80/19

INVERTEK - 0.55kW 3ph 4 Pole Foot and Face Mounting 80 Frame AC Motor for 230V or 400V 3 phase supply. Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.

Fixed Main Supply Output:  0.55kW (0.75HP) x 1370RPM at 230V or 400V x 50Hz 3ph.
Inverter Drive Supply Output:  20:1 Speed Control range from 137RPM to 2740RPM at 5Hz to 100Hz, with suitable de-rating at the lower speeds

.Full Load Current - 2.75A at 230V, or 1.59A at 400V.

Efficiency is 72%.

Terminal box cable entry: Includes 1 x M25 Gland.
Terminal box position: Top.
Enclosure rating: IP66.

Power Factor is 0.78 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links ‘two at one side’ for 400V 'Star' connection.

160mm Wide x 290mm Long x 213mm high overall in its IP55 enclosure.
Foot mount on 10mm holes at 125mm wide x 100mm centres 50mm back from the shaft shoulder.
Face mount on M6 tapped holes at 100mm PCD with 80mm diameter spigot in the 120mm diameter flange.
Shaft is 19mm dia x 40mm with 6mm wide key.
Weight is 13.1kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor over-temperature protection is included.

Construction: Cast-Iron

For Variable Speed Use…
Part Time Output when Inverter powered is...
1.82Nm - 0.55kW (0.75HP) x 2740RPM at 100Hz
3.84Nm - 0.55kW (0.75HP) x 1370RPM at 50Hz
3.84Nm - 0.275kW (0.375HP) x 685RPM at 25Hz
3.84Nm - 0.055kW (0.075HP) x 137RPM at 5Hz
Continuous Output when Inverter powered is...
2.74Nm - 0.55kW (0.75HP) x 1918RPM at 70Hz
3.84Nm - 0.55kW (0.75HP) x 1370RPM at 50Hz
3.26Nm - 0.23kW (0.31HP) x 685RPM at 25Hz
1.82Nm - 0.0275W (0.037HP) x 137RPM at 5Hz

IDA Motor Brochure
