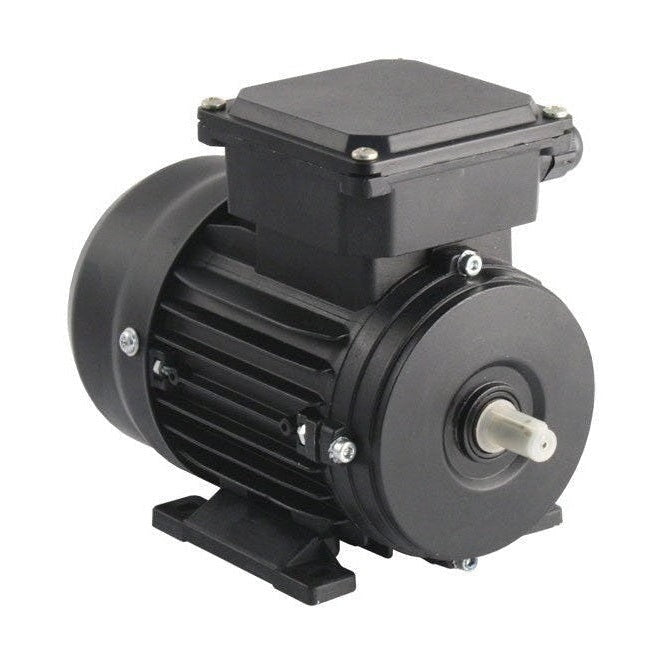

INVERTEK 0.75kW (1HP) 4 Pole AC Induction Motor 3ph 240V/415V B3 Foot Mount - 80/19

INVERTEK 0.75kW 4 Pole Premium Efficiency 80 Frame AC Induction Motor for 230V or 400V 3 phase supply.  Inverter Rated for use with a Variable Frequency Inverter Drive or fixed-frequency mains supply at 50/60Hz.

Fixed Main Supply output:  0.75kW (1.0HP) x 1440RPM at 230V or 400V x 50Hz 3ph.
Inverter Drive Supply Output: 14:1 Speed Control range from 144RPM to 2016RPM at 5Hz to 70Hz, with suitable de-rating at the lower speeds.

Full Load Current: 3.21A at 230V(DELTA) or 1.9A at 400V (STAR)
Power Factor: 0.69 when mains connected at 50Hz.
Efficiency: 82.5% at full load.
Full Load Torque: 4.97Nm

160mm Wide x 290mm Long x 217mm high overall in its IP55 enclosure.
Foot Mount on 10mm holes on 125mm x 100mm centres, 50mm back from the shaft shoulder.
Shaft is 19mm dia x 40mm with 6mm wide key.
Weight is 11.7kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor over-temperature protection is included.
