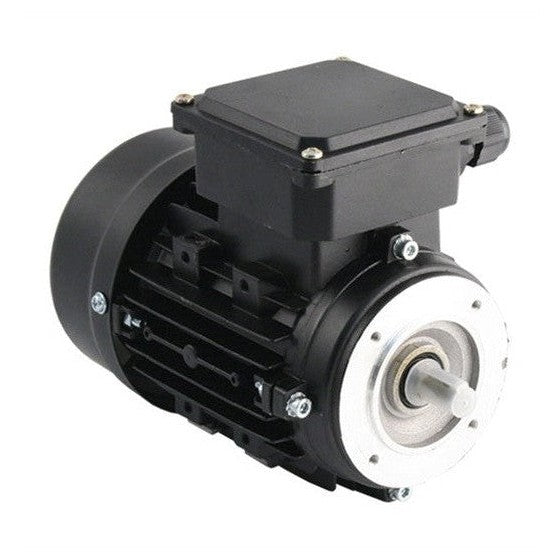

INVERTEK 4kW (5,5HP) 4 Pole AC Induction Motor 3ph 230/400V B14 Face Mount - 112M/28

INVERTEK 4kW 3ph 4 Pole Premium Efficiency B14 Face Mount 112 Frame AC Motor for 230V or 400V 3 phase supply.
Suitable for use with a Variable Frequency Inverter Drive having a 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz/60Hz.

** 4kW motors at this rating are normally 400V (DELTA) and 690V (STAR) - see item listed below**
** This motor is suitable for a 3 phase 230V supply which can be generated by a single phase AC Inverter - see item listed below**

Rating: 4kW at 1450RPM, 230V or 400V 3ph 50Hz.
Inverter Rated: 14:1 Speed Control range from 145RPM to 2030RPM for 5Hz to 70Hz control, with suitable de-rating at the lower speeds.

Full Load Current: 13.76A at 230V (DELTA)
Full Load Current: 7.95A at 400V (Star)
Power Factor: 0.82 when mains connected at 50Hz.
Efficiency: 88.6% at full load.
Full Load Torque: 26.34Nm

224mm Wide x 397mm Long x 278mm High (Including terminal box);

Face mount on 4 x M8 tapped holes at 130mm PCD with 110mm diameter register in the 160mm diameter flange
Shaft: 28mm diameter, 60mm long with 8mm key
IP55
Weight: 33.9kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Thermistor for over-temperature protection.

Download INVERTEK motor brochure:

• IDA Motor Brochure
