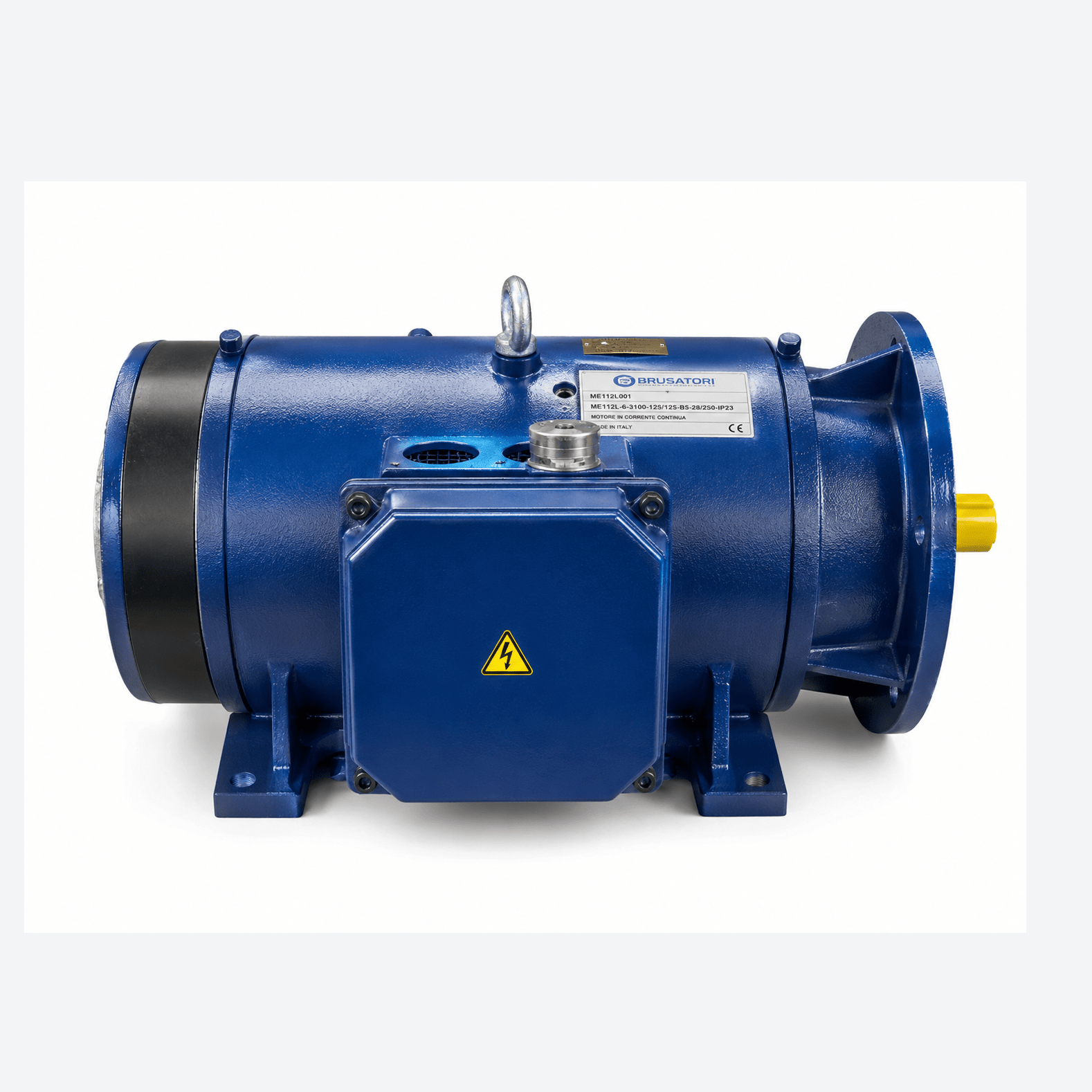

ME112L DC Motor is a 6 kW, 3100 RPM drive suitable for continuous duty in industrial equipment. With a 125 V armature and 125 V field supply, this motor delivers reliable torque for demanding applications.
-
Power: 6 kW
-
Speed: 3100 RPM
-
Armature voltage: 125 V; Field voltage: 125 V
-
Mounting: B5
-
Shaft: 28 x 60 mm
-
Flange: 250 mm
-
Cooling: Self-ventilated
-
Protection: IP23
-
Insulation: Class F
-
Service Factor: S1
-
Terminal Box: Leftside, with stabilizer series
The ME112L is designed for reliability and efficiency in continuous operation. Self-ventilated cooling supports long operation with minimal maintenance, while the IP23 protection rating provides solid ingress protection in workshop environments. The 28 x 60 mm shaft and 250 mm flange offer sturdy mounting and easy coupling to driven loads.
Ready to upgrade? Order now to secure this ME112L DC motor for robust 6 kW performance, or learn more about its fit for your application.
