Rectifier 6-Pole Half Wave ~460V (+5%) U output = 0.45*U input, Built-In Spark Suppressor (H)
Rectifier 6-Pole Half Wave ~460V (+5%) U output = 0.45*U input, Built-In Spark Suppressor (H)
Regular price
$768.00 AUD
Regular price
Sale price
$768.00 AUD
SKU:BEG-261-460
In stock

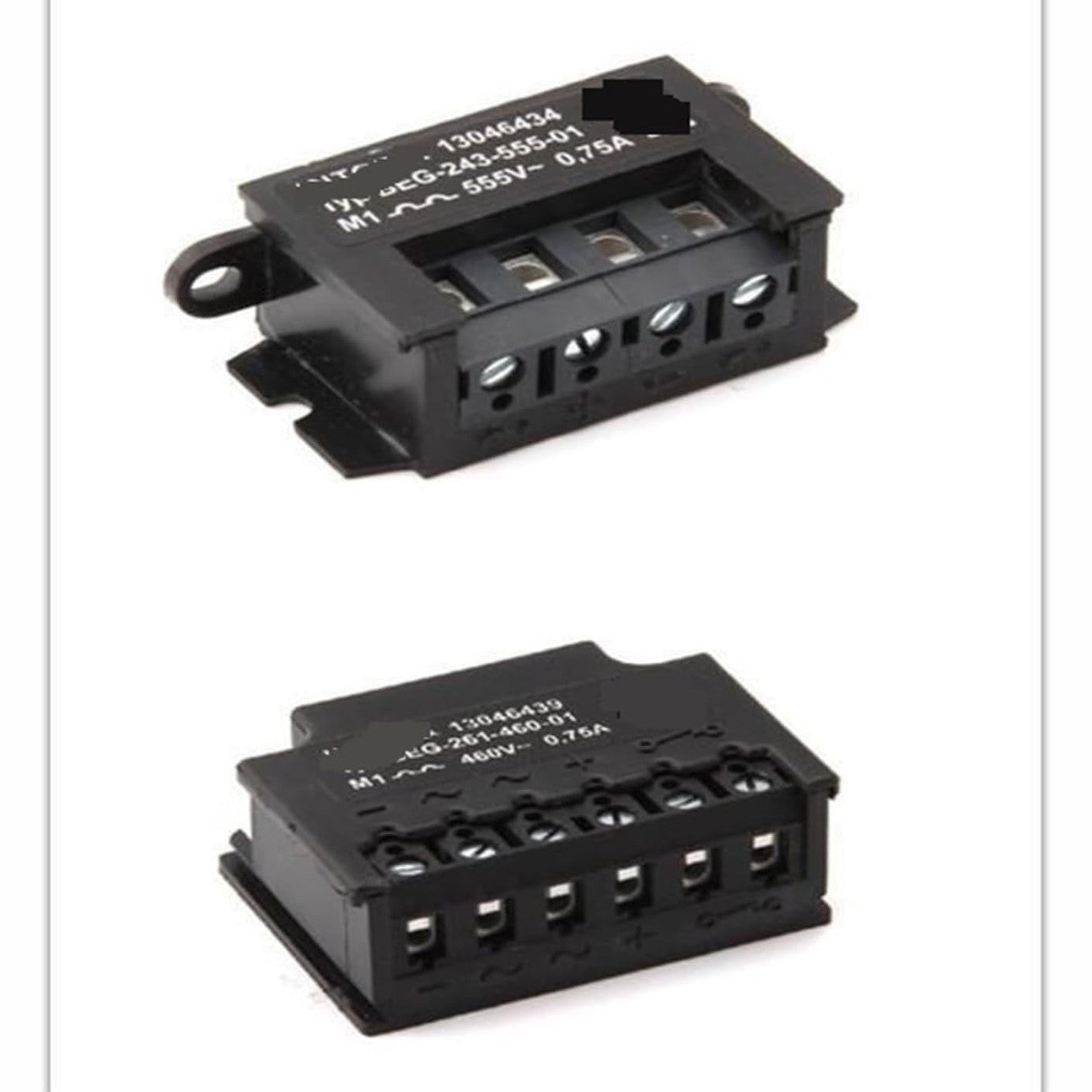

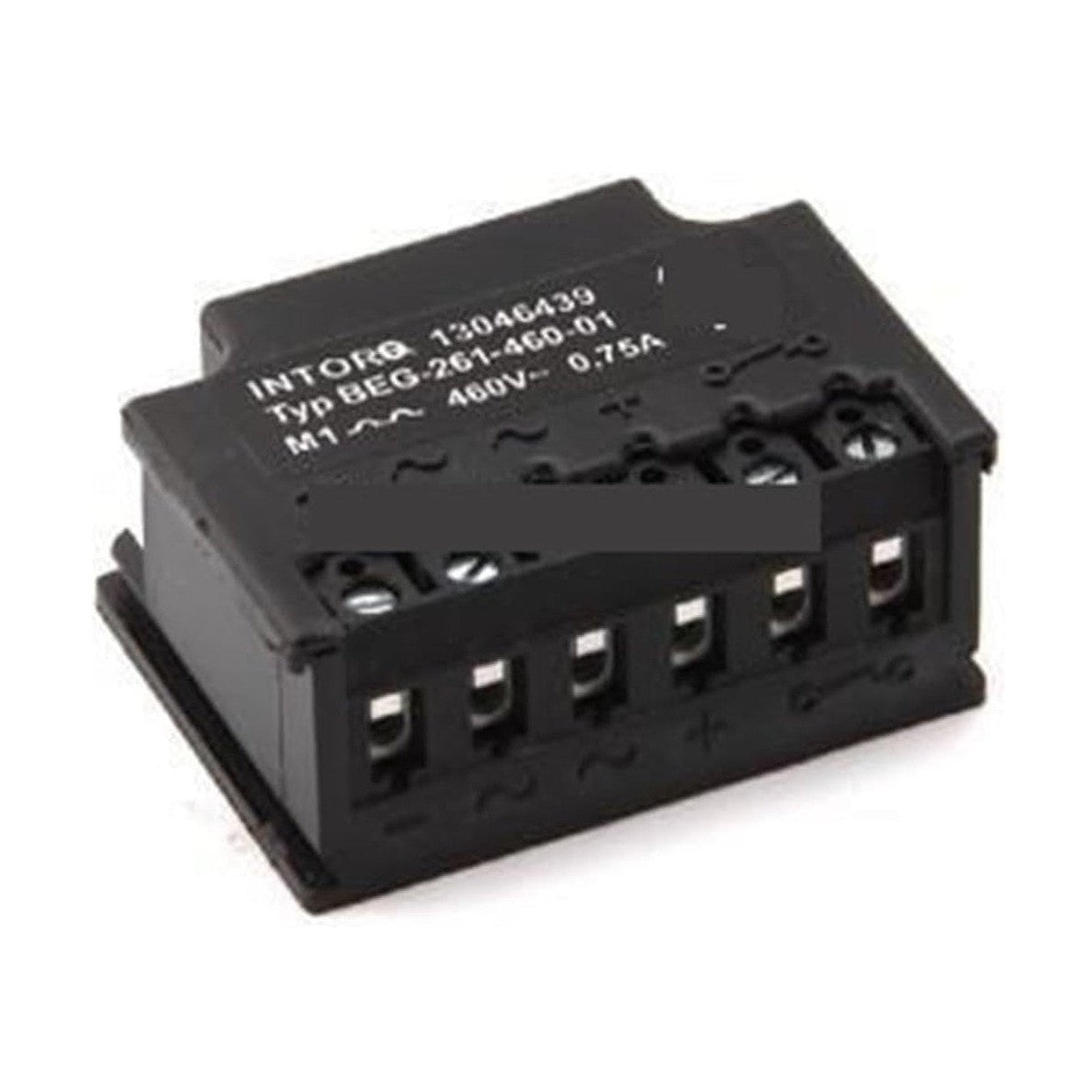

The INTORQ BEG-261-460 is a 6-pole half wave rectifier used to convert AC voltage into DC voltage for supplying electromagnetic motor brakes and clutches.
Technical Specifications:
The module features the following:
Input Voltage Range: 0 to 460 V AC.
-
Output Voltage: Calculated as Uin x 0.45 V dc
- Max Current: 0.75 A at 60°C.
- Temperature Range: -40°C to +80°C.
- Mounting: Horizontal position with screw terminal connectors.
- Integrated Protection: Includes a spark suppressor to limit induction voltage and reduce wear on switching contacts.
