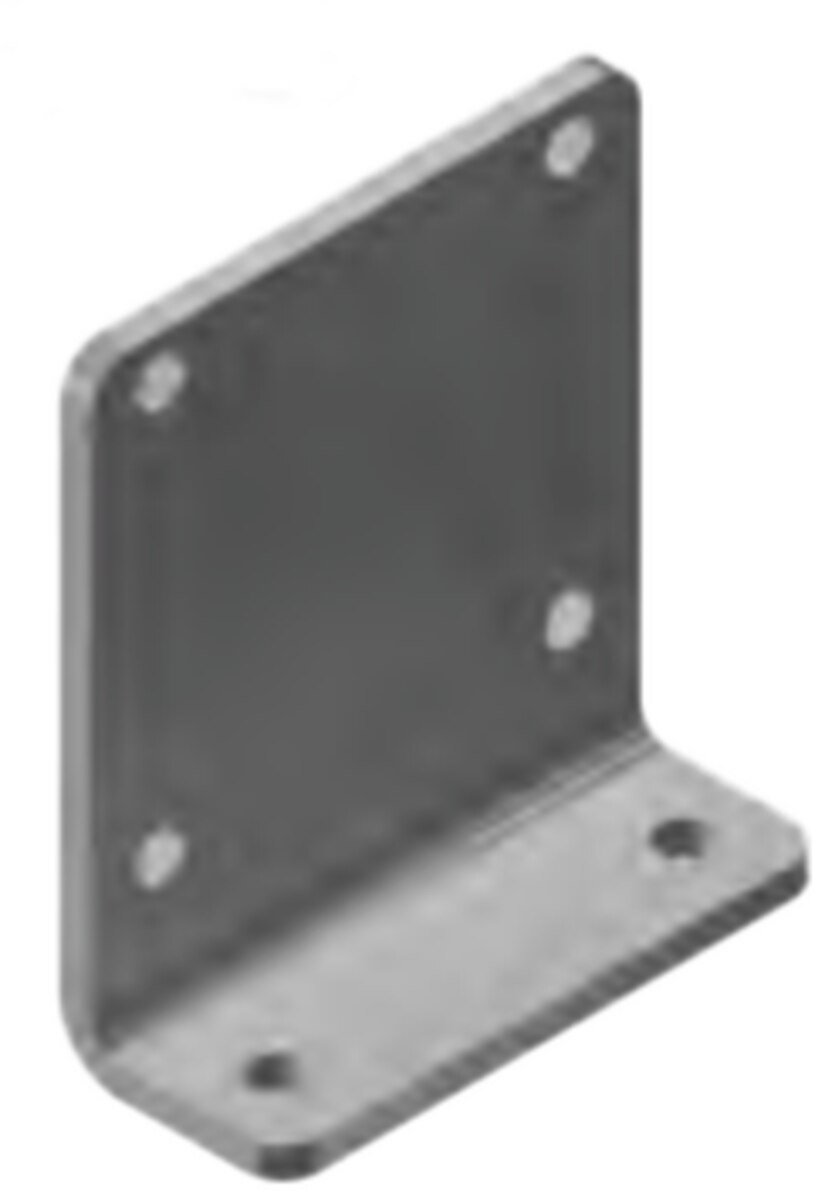

Right Angle Mounting Bracket, IDA-LX Series

The Right Angle Mounting Bracket serves as a base for mounting the IDA-LX transducer perpendicular to a surface. The transducer may be mounted in any of four different wire rope exit orientations when mounted on the outside of the bracket (see figure) or any of three orientations when placed above the bracket mounting holes.
